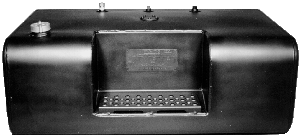

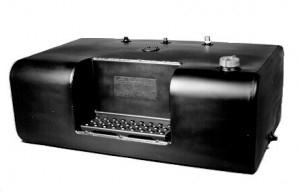

Steal Center Step Tanks

Center Step Tanks are manufactured of prime grade hot rolled steel, with a checker non-skid step well. Tanks are primed on the exterior surface. Interior of tank is fog-sprayed with anti-rust oil, for protection. All models designed for Gas or Diesel fuel, and labeled F.H.W.A., to meet the requirements for Side Mounted and Non- Side Mount Fuel Tanks. Tanks are tested for leaks prior to shipping.

We offer a full range of sizes and capacities, not all shown on this site.

Give us your requirements so we may design a tank to your specification.

Note: Fitting arrangement is not necessarily the same as shown in

Tanks are Equipped with Fill Cap, Vent, Draw Tube, Sending Unit Flange (w/ cover, gasket, & 5 screws), Return, Drain, and Crossover Flanges. All openings are plugged for shipping

Part#	Size H x W x Lg	Gallons	Price
SST40115 RH	11″ H x 24″ W x 39″ Lg	40 gal	$661.90
SST40116 LH	11″ H x 24″ W x 39″ Lg	40 gal	$661.90
SST50155 RH	11″ H x 24″ W x 50″ Lg	50 gal	$755.75
SST50156 LH	11″ H x 24″ W x 50″ Lg	50 gal	$755.75
SST51013 RH	14″ H x 25″ W x 38″ Lg	51 gal	$634.62
SST51014 LH	14″ H x 25″ W x 38″ Lg	51 gal	$634.62
SST51010 LH	15″ H x 25″ W x 37″ Lg	51 gal	$710.51
SST50146 LHRH	15″ H x 25″ W x 37″ Lg	51 gal	$814.15
SST44007 RH	16″ H x 20″ W x 36″ Lg	40 gal	$803.09
SST44008 LH	16″ H x 20″ W x 36″ Lg	40 gal	$803.09
SST60102 RH	17″ H x 26″ W x 36″ Lg	60 gal	$729.27
SST65005 RH	18″ H x 25″ W x 37″ Lg	65 gal	$857.82
SST65006 LH	18″ H x 25″ W x 37″ Lg	65 gal	$857.82
SST90014 LH	20″ H x 26″ W x 46″ Lg	90 gal	$960.63
SST10014	20″ H x 26″ W x 51″ Lg	100 gal	$988.13

Optional features include visual or electrical sending unit, dashboard indicator switch, locking cap, fill neck strainer or anti-siphon baffle, ball check drain (w/ 3/8 key wrench), steps (both upper & lower)
